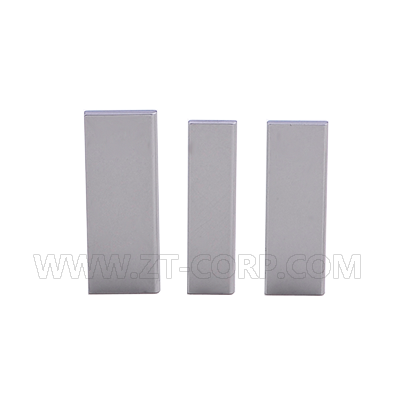

Yuken Vane

Yuken vane is double-sided circular section, Improve the lifetime of the stator and the vane, To reduce the noise. Yuken vane applied to the following types of pump:

1. Yuken single-pump series

PV2R1, PV2R2, PV2R3, PV2R4, 50T, 150T;

2. Yuken double-pump series

PV2R12, PV2R13, PV2R14, PV2R23, PV2R24, PV2R33, PV2R34.
 Yuken Vane
Material Hardness Thickness Width Length Radius Precision Surface
Roughness
High Speed Steel
ASTM:M2
JIS:SKH51
DIN:S6-5-2 1.3247 		HRC 60°~65° 2.200 17.000 30.000 +R1.80 3μ-5μ Ra＜0.2
1.800 8.000 22.000 +R1.50 +R1.20
1.800 8.000 30.000 +R1.50 +R1.20
1.800 10.000 30.000 +R1.50 +R1.20
1.800 10.000 37.000 +R1.50 +R1.20
2.400 18.000 55.000 +R1.80
