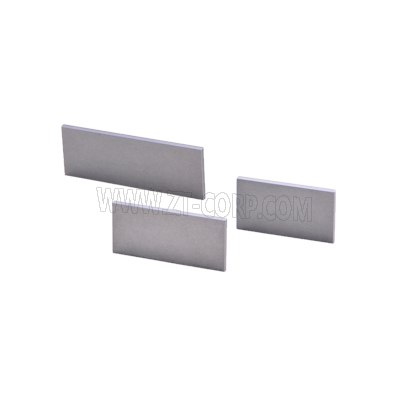

Hydraulic Pump Vane

Hydraulic pump vane and rotor, stator and waist into, the new structure of oil outlet of the pump core components. Blade mounted in the rotor, when the rotor is driven by the prime mover is rotated, the blades being thrown under the effect of centrifugal force, the inner stator surface moving along a curve, to maintain contact with the inner surface of the stator, between the blade tips and the stator is formed reliable seal.
Eccentric rotor and stator installation, as the rotor turns, between the stator and blade in the formation of the change of volume increase and a decrease in volume.
The stator is provided with the oil port, the use of the valve plate into the oil chamber and the oil chamber separated. Valve plate mounted on the stator, the rotor blades and components side, the suction port located on the site of the volume increases, the oil port is located at the site of the volume is reduced, all the oil through the port plate into and out of the pumping mechanism.

Hydraulic Pump Vane
Material Hardness Thickness Width Length Radius Precision Surface
Roughness
High Speed Steel
ASTM: M2
JIS: SKH51
DIN: S6-5-2 1.3343 		HRC 60°~65° 1.430 8.5800 15.575 +R1.80 3μ-5μ Ra＜0.2
1.425 8.7800 21.945 +R2.00
1.425 8.5500 26.940 +R1.80
1.685 10.200 15.520 +R1.80
1.685 10.200 21.925 +R2.00
1.685 10.200 26.999 +R2.00
1.685 10.200 30.450 +R2.00
2.500 27.000 40.000 Chamfer15°+R1
2.500 27.000 50.000 Chamfer15°+R1
2.500 27.000 60.000 Chamfer15°+R1
2.500 27.000 70.000 Chamfer15°+R1
2.500 27.000 80.000 Chamfer15°+R1
1.600 9.000 12.000 +R0.90
1.600 8.450 20.000 +R0.90
1.600 9.650 22.000 +R0.90
1.615 8.230 19.980 1side:2*Chamfer40°
1.800 8.000 22.000 -R1.50
1.800 9.500 30.000 -R1.50
1.800 10.000 37.000 -R1.50
1.800 12.000 37.000 -R1.50
1.800 12.000 18.000 -R1.50
2.200 12.000 30.000 -R1.80
2.200 19.000 24.000 -R1.80
2.200 17.000 30.000 -R1.80
2.200 19.000 19.000 -R1.80
2.200 19.000 30.000 -R1.80
2.200 19.000 42.000 -R1.80
2.400 18.000 55.000 -R1.80
