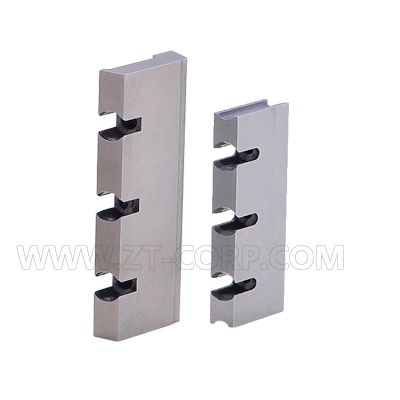

Hydraulic Motor Vane

Hydraulic Motor Vanes, which do have springs at the bottom, are set towards the cylinder radius direction. VANEs are core parts of Hydraulic Vane Motors. Due to its low rotary inertia and flexibility, Hydraulic Motor Vane could suitable to higher frequency shift and low torque and high-speed circumstance. Hydraulic Motor Vane
Material Hardness Thickness Width Length Radius Precision Surface
Roughness
High Speed Steel
ASTM: M2
JIS: SKH51
DIN: S6-5-2 1.3343 		HRC 60°~65° 4.230 22.925 53.079 2-E0.67
concave 		＜5μ Ra＜0.2
4.745 13.700 40.596 Flat
5.740 13.700 39.530 Flat
6.335 15.000 39.950 Flat
8.175 28.510 63.497 2-R2.3
9.640 38.040 77.77/2/B off-centering2
+R40.2
