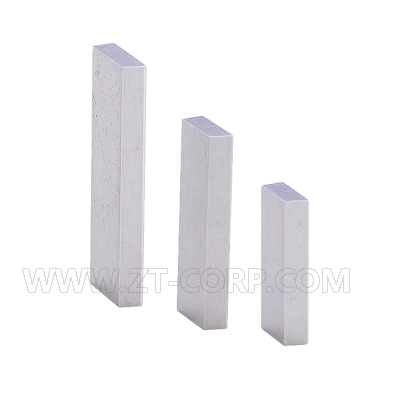

Atos Vane

ATOS VANE is cohering tightly to cam ring inner wall when the rotor is work, due to the action of centrifugal force and oil pressure inside the cartridge. In this way, When ATOS vane pump rotor rotates, blade under the action of centrifugal force and oil pressure, the tip close to the inner surface of the stator. So that the two blades of the rotor and the stator working volume surface constituted with the first small to large suction drain and then descending, the blades rotate a week, complete with two suction drain. It has high pressure rated, compact structure, low noise, high efficiency, long service life and convenient flow control.

Single vane pump model:

PFE-31,PFE-32,PFE-41, PFE-42,PFE-51,PFE-52,PFEO-41,PVT,PVL；

Double vane pump models:

PFED4,5 ,PFEDO-43. 		Yuken Vane
Material Hardness Thickness Width Length Radius Precision Surface
Roughness
High Speed Steel
ASTM: M2
JIS: SKH51
DIN: S6-5-2 1.3343 		HRC 60°~64° 4.491 10.550 29.970 Chamfer15° 3μ-5μ Ra＜0.2
4.491 11.800 39.970
4.491 14.000 49.940
