Benefits:

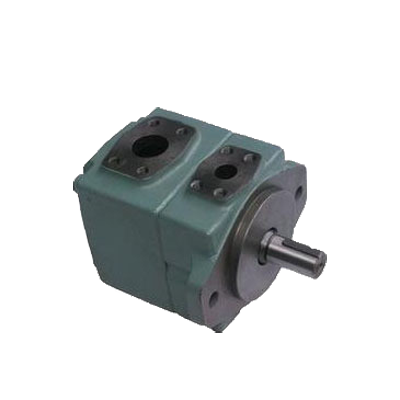

1.PV2R Series Double Vane Pumps consist of two PV2R series single pumps combined in tandem within a single housing and driven by a common shaft;

2.A Single suction port and two discharge ports are provided so that the output flow can be supplied to separate circuits.

Features:

1.Small Volume Pump: The range of nominal displacement of the Yuken Hydraulics PV2R14 Series Double vane pump is 6 ml/rev up to 23ml/rev;

2.Large Volume Pump:The range of nominal displacement is 136ml/rev up to 237 ml/rev;

3.The maximum pressure is up to 21 Mpa;

4.The shaft speed range is 750r/min up to 1800r/min.
